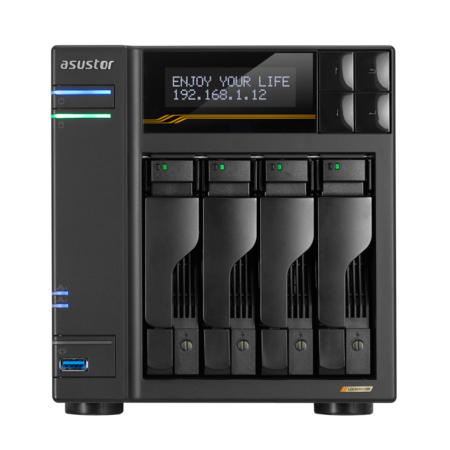

The ASUSTOR LOCKERSTOR 4 Gen3 AS6804T is a high-performance four-bay NAS centered on AMD's Ryzen Embedded V3C14. It ships with 16GB of ECC DDR5 memory and supports up to 64GB, giving it considerably more memory headroom than many mainstream four-bay systems. Four M.2 NVMe slots complement the four SATA bays. Networking is a standout feature: ASUSTOR includes two 5GbE and two 10GbE RJ45 ports, plus two USB4 ports and a PCIe expansion slot. The V3C14 is a four-core, eight-thread processor but AMD does not list integrated graphics for this part, and ASUSTOR lists no multimedia output, so DiskBarn should position this model around high-speed storage, backup, creator workflows and virtualization rather than hardware-transcoded media. ADM supplies the NAS software platform.
As an Amazon Associate I earn from qualifying purchases.
| Brand | ASUSTOR |
|---|---|
| Series | LOCKERSTOR Gen3 |
| Model Number | AS6804T |
| Release Year | 2025 |
| Lifecycle Status | Current |
| Form Factor | Tower |
| Amazon ASIN | B0DBYXXH9M |
| HDD Bays | 4 |
|---|---|
| M.2 NVMe Slots | 4 |
| Supported Drive Types | 3.5-inch SATA HDD; 2.5-inch SATA HDD/SSD; M.2 2280 NVMe SSD |
| Supported RAID | Single; JBOD; RAID 0/1/5/6/10 |
| File System | Btrfs; ext4 |
| CPU | Ryzen Embedded V3C14 |
|---|---|
| CPU Cores | 4 |
| Installed RAM | 16 GB |
| RAM Type | DDR5-4800 ECC SODIMM |
| ECC Memory | True |
| Maximum RAM | 64 GB |
| Hardware Transcoding | No |
| Plex Fit | Direct-play only |
| 1GbE Ports | 0 |
|---|---|
| 2.5GbE Ports | 0 |
| 5GbE Ports | 2 |
| 10GbE RJ45 Ports | 2 |
| 10GbE SFP+ Ports | 0 |
| PCIe Expansion | Yes |
| Operating System | ADM |
|---|
These are NAS-oriented HDD families already tracked by DiskBarn. They are comparison starting points, not a guarantee of compatibility. Check the NAS manufacturer's drive-compatibility guidance and verify the exact HDD model before purchasing.
