The Synology DiskStation DS224+ is a two-bay Plus-series NAS with an Intel Celeron J4125, 2GB DDR4 memory, dual 1GbE ports and DSM. It is positioned for home backup, file sharing and media workloads where Synology's software ecosystem matters more than high-speed networking.
As an Amazon Associate I earn from qualifying purchases.
| Brand | Synology |
|---|---|
| Series | DiskStation Plus |
| Model Number | DS224+ |
| Release Year | 2023 |
| Lifecycle Status | Current/Recent |
| Form Factor | Tower |
| Amazon ASIN | B0C6927XPX |
| HDD Bays | 2 |
|---|---|
| M.2 NVMe Slots | 0 |
| Supported Drive Types | 3.5-inch SATA HDD; 2.5-inch SATA SSD |
| Supported RAID | SHR; Basic; JBOD; RAID 0/1 |
| File System | Btrfs; ext4 |
| CPU | Celeron J4125 |
|---|---|
| CPU Cores | 4 |
| Installed RAM | 2 GB |
| RAM Type | DDR4 non-ECC |
| ECC Memory | False |
| Maximum RAM | 6 GB |
| Hardware Transcoding | Unverified |
| Plex Fit | Candidate |
| 1GbE Ports | 2 |
|---|---|
| 2.5GbE Ports | 0 |
| 5GbE Ports | 0 |
| 10GbE RJ45 Ports | 0 |
| 10GbE SFP+ Ports | 0 |
| PCIe Expansion | No |
| Operating System | DSM |
|---|

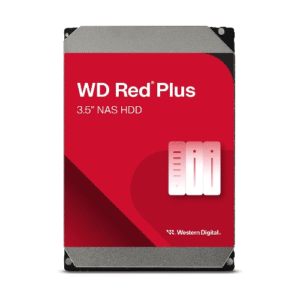

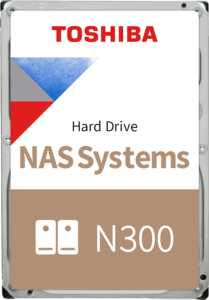

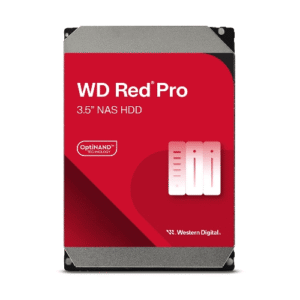

These are NAS-oriented HDD families already tracked by DiskBarn. They are comparison starting points, not a guarantee of compatibility. Check the NAS manufacturer's drive-compatibility guidance and verify the exact HDD model before purchasing.
